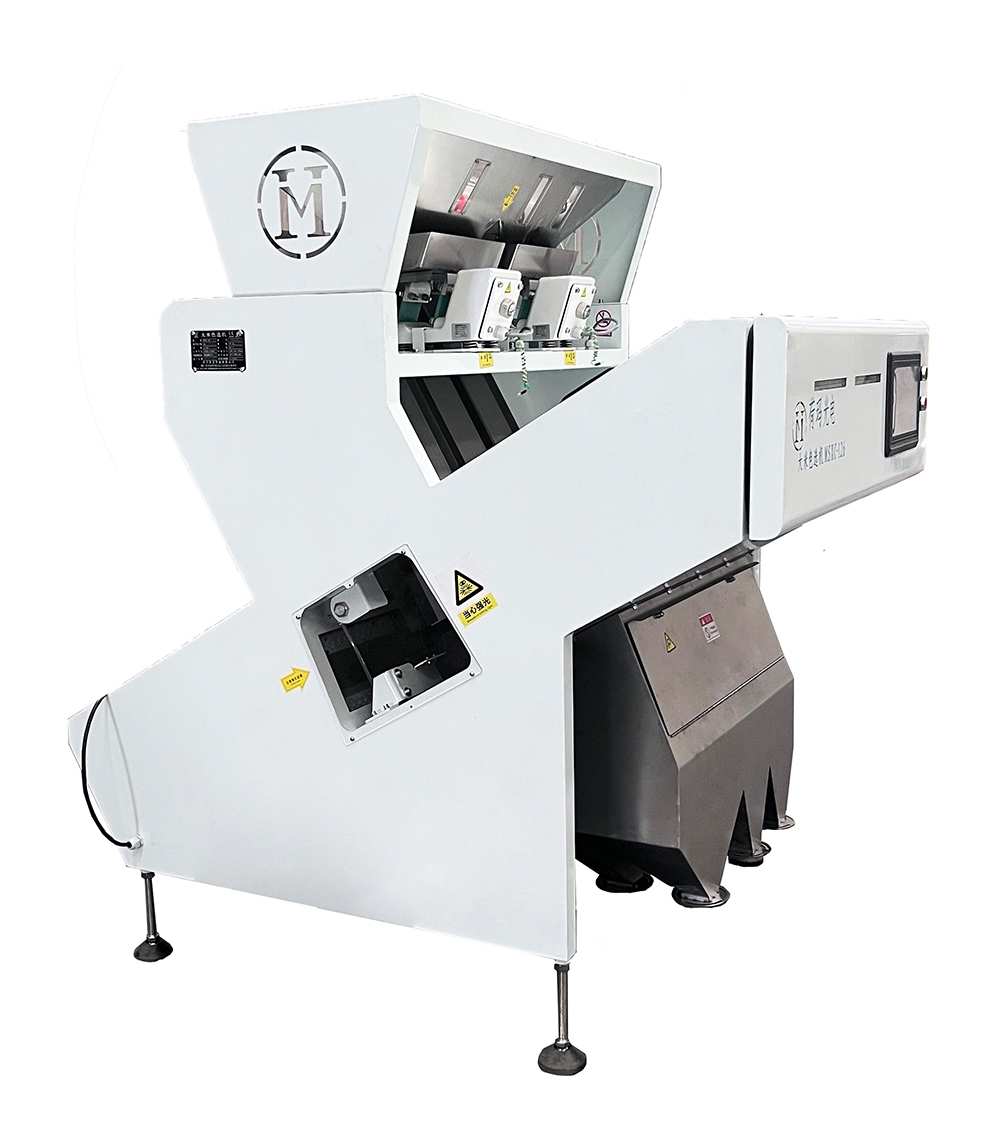

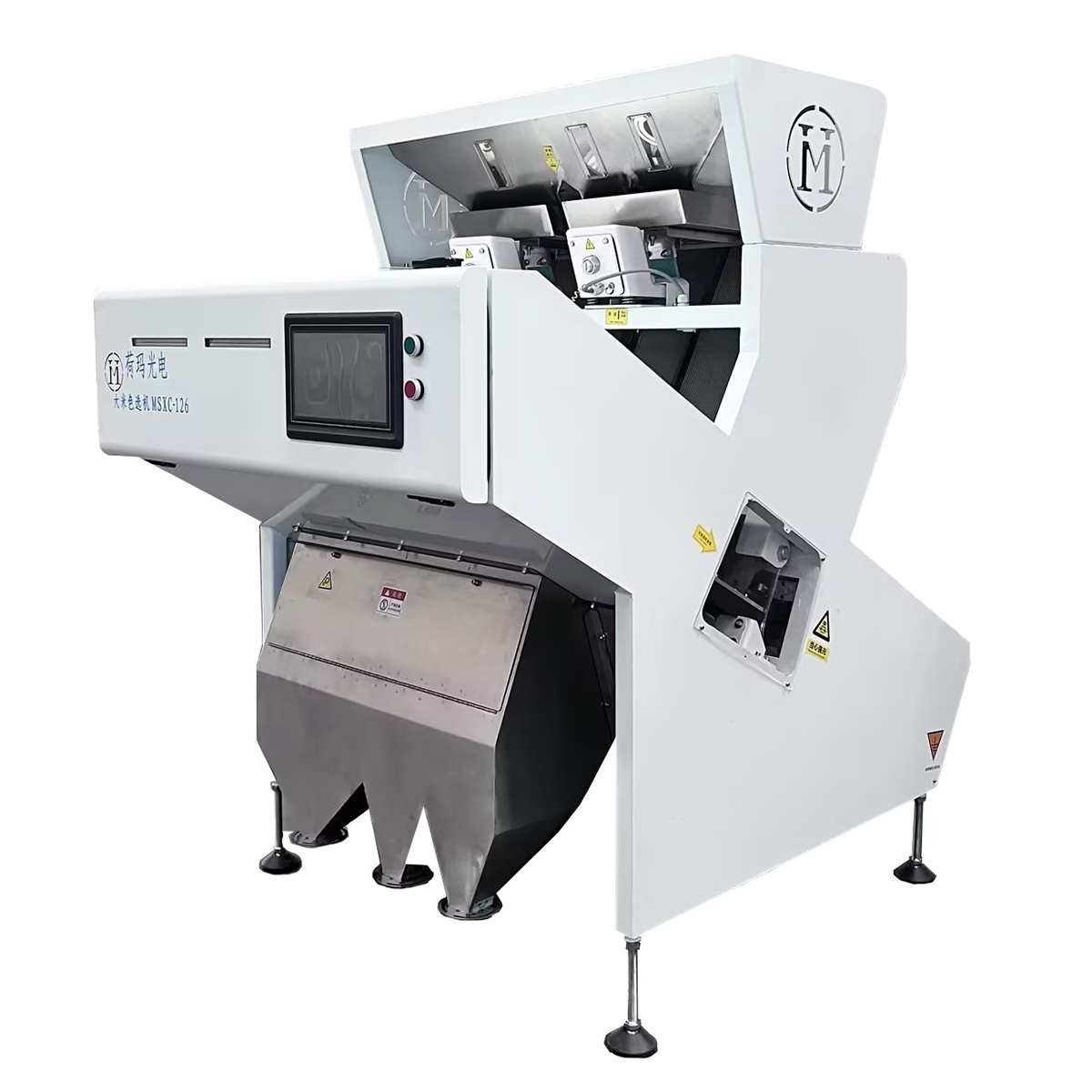

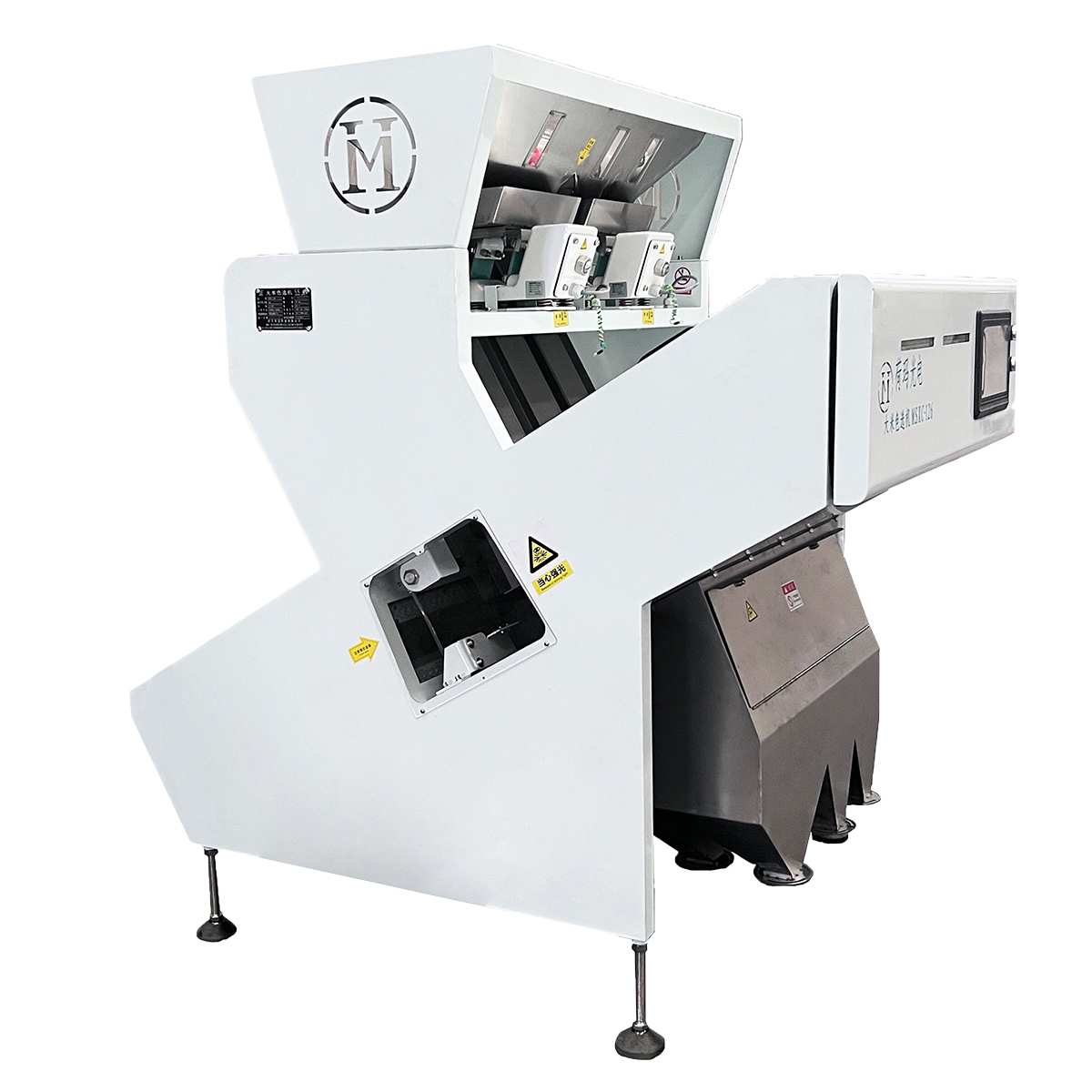

Color Sorter Machine | Precision Selection for Every Quality Grain
Rice and Industrial Color Sorter — Accurately Sorting Rice, Plastic, Quartz Sand, and Various Other Materials
Technical Specifications:
| Model | Capacity(kg/h) | Sorting accuracy(%) | Carryoverrate(%) | Power(KW) | Voltage V/HZ | Install Dim(mm) | Packing Din(mm) | Net/Gross Weight(kg) |
|---|---|---|---|---|---|---|---|---|
| MSXC-80 | 800-1800 | >99 | <30:1 | 0.9 | 220V/50 | 915*1515*1620 | 1700*1050*1750 | 290/320 |

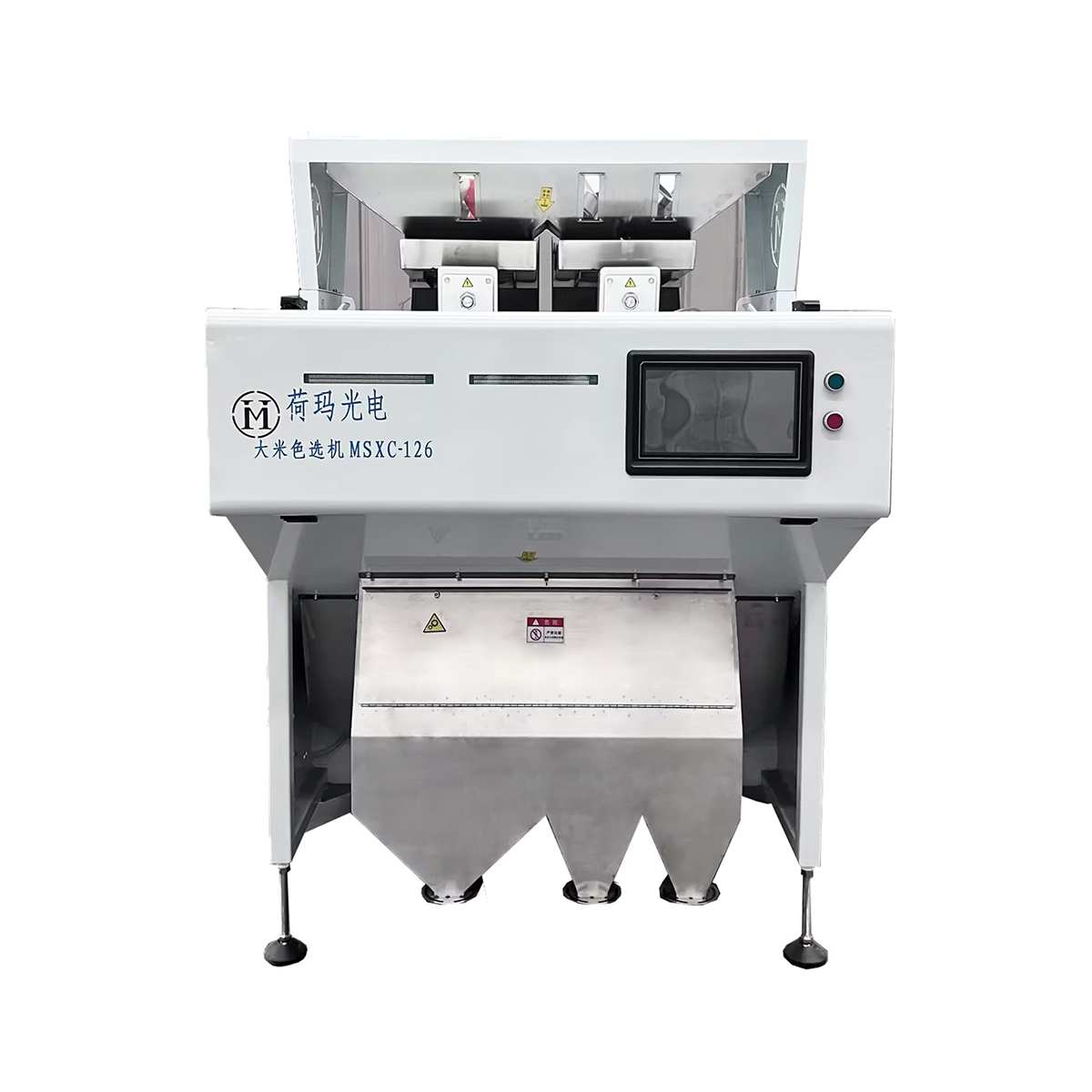

| MSXC-126 | 1500-3000 | >99 | <30:1 | 1.2 | 220V/50 | 1252*1524*1625 | 1800*1150*1850 | 490/520 |
| MSXC-240 | 1800-3500 | >99 | <30:1 | 1.5 | 220V/50 | 1500*1530*1650 | 1900*1250*1950 | 550/580 |
• Multi-Spectral Imaging Technology: Equipped with CCD industrial cameras and a visible light multispectral system to accurately capture differences in color, shape, and texture of rice grains.
• High Detection Sensitivity: Capable of detecting color variations as small as 0.02 mm², adaptable to different rice types and impurity characteristics.
• Adaptive Adjustment Function: Automatically adjusts recognition parameters based on material characteristics for refined sorting accuracy.
• Large Processing Capacity: Each unit can process 1–3 tons per hour (depending on model), meeting the efficiency needs of medium and large-scale production lines.
• Multi-Channel Design: Advanced models support dual-channel and four-channel configurations to increase throughput and minimize idle time.

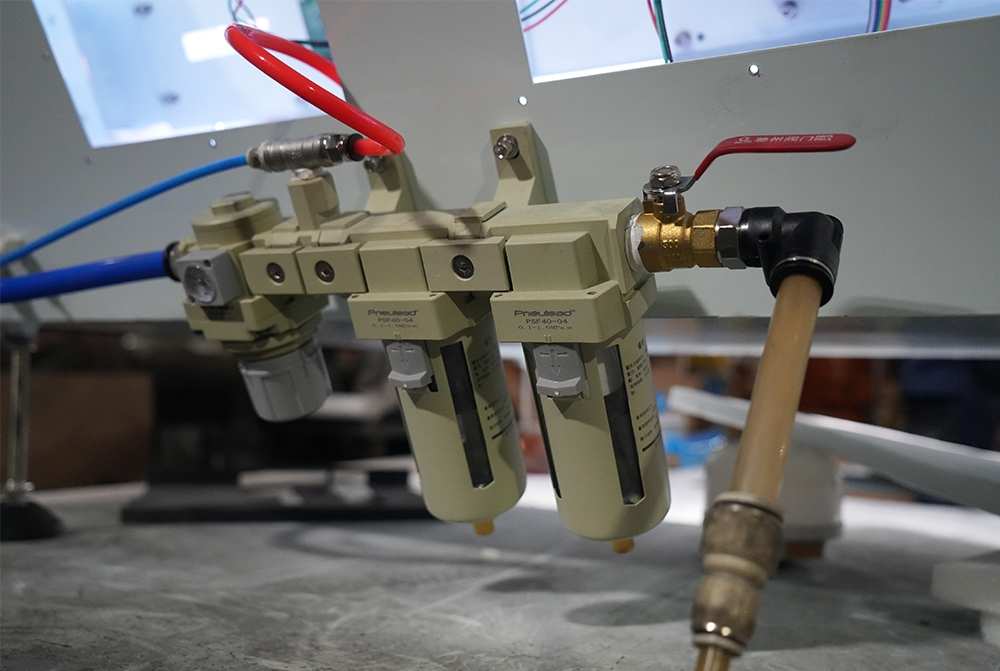

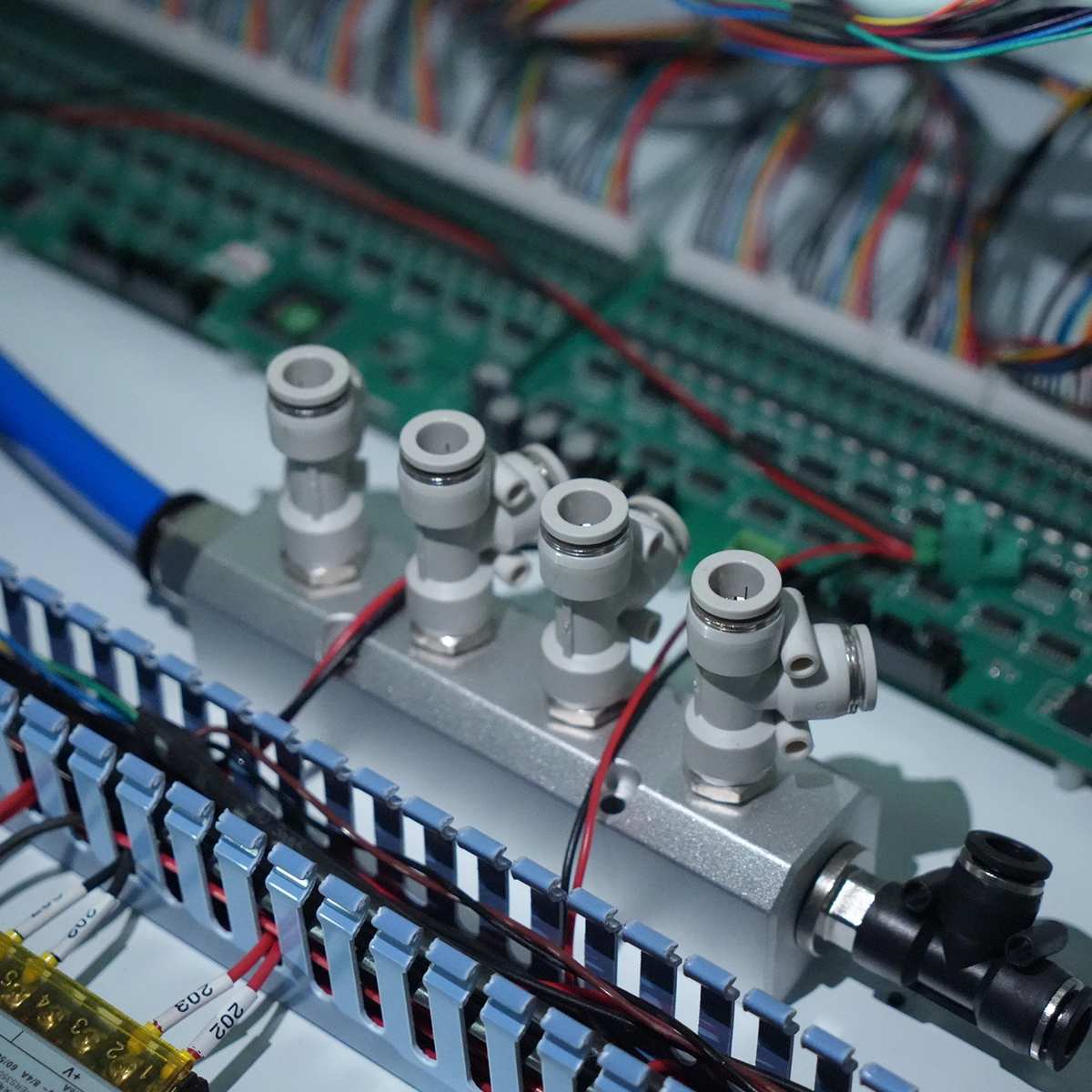

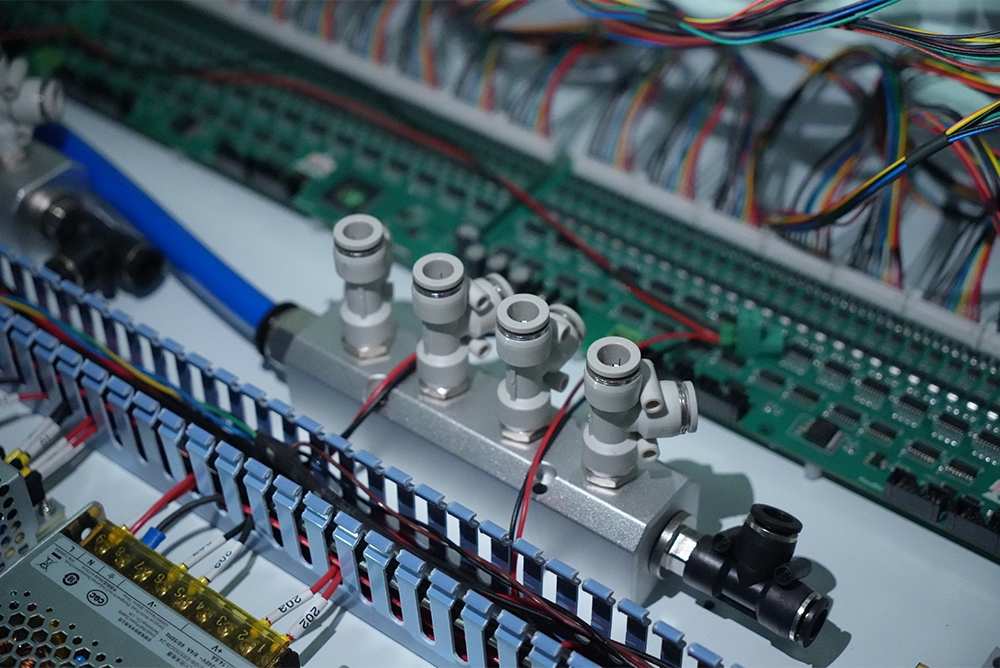

• Precision Air-Jet Ejection: Utilizes high-response electromagnetic valves to control high-pressure air jets, accurately removing discolored grains while maximizing good grain retention.
• Recovery Rate ≥99%, effectively minimizing raw material waste.
• Secondary Sorting System: Automatically re-inspects and re-sorts to further enhance purity.
• Applicable to Various Rice Types: Suitable for white rice, brown rice, glutinous rice, fragrant rice, red rice, and more.
• Detects Multiple Impurities: Efficiently identifies and removes non-rice impurities such as plastic, metal, glass, and insect-damaged grains.
• Replaceable Background Plate: Adjustable color background plates meet special sorting requirements for color variation.
• Food-Grade Stainless Steel Structure: All contact parts comply with HACCP international food safety standards, ensuring easy cleaning and hygiene.
• Dust-Proof Sealed Design: Core optical components are enclosed in a dust-proof sealed chamber to ensure long-term stable operation.
• Low-Energy Core Components: Energy consumption as low as 0.5–2 kWh per ton, significantly reducing operational costs.
• Green Sorting Process: 100% physical sorting with no chemical additives — environmentally friendly and pollution-free.

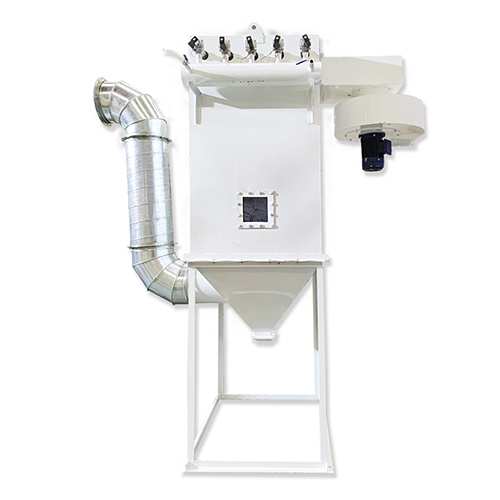

Optional Accessories ————
Customized solutions for rice milling machines, rice color sorter machines, vacuum rice packing machines, and complete rice processing lines.
